M-Series development programme · 20–60 kW pilot scope

A modular industrial UPS platform for specification-led projects

NORVION is developing a three-phase online UPS platform around 20 kW power modules for EPC, industrial automation and SCADA projects. Core power stages and static-bypass transfer have passed functional testing; parallel operation, N+1 and IEC/EN 62040 validation remain in engineering development.

Functional power-stage tests completedN+1 in developmentIEC/EN 62040 validation planned

Check pilot fit Send a single-line diagram

Engineering management — the Netherlands. Manufacturing — Uzbekistan. Target platform range — 20–100 kW. Current pilot scope — 20–60 kW.

POWERING CONTINUITY

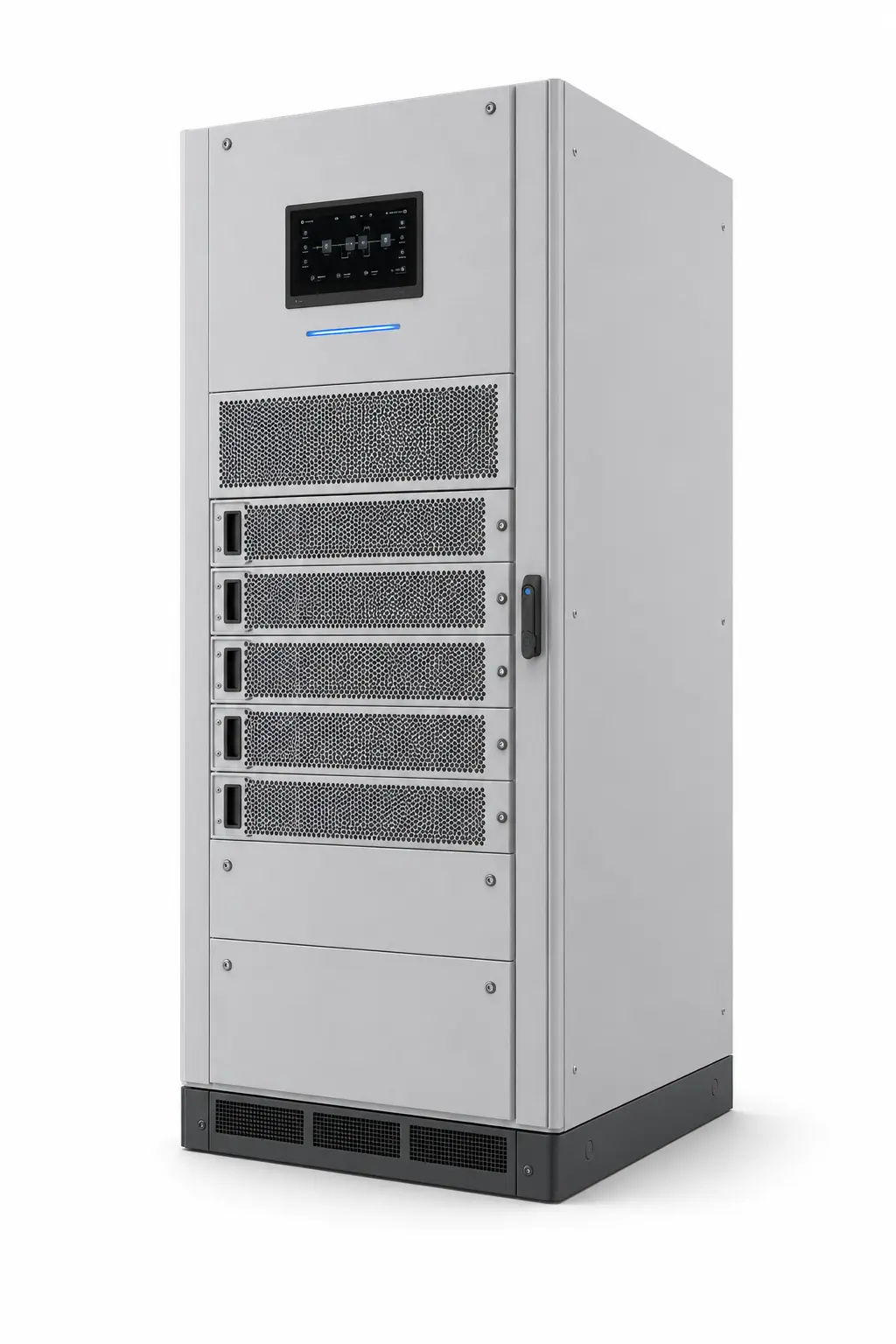

Concept visualisation of the NORVION M-Series modular industrial UPS — Concept visualisation of the NORVION M-Series

01 / Platform

The platform in numbers

Target specifications are clearly marked and are not presented as serially validated performance.

Target specification20 kW

Power module

Target specification20–100 kW

Target platform range

Target specification3 / 3

Three-phase input and output

Target specificationOnline UPS

Double conversion topology

In developmentModbus

RS-485 / TCP communications

Target specificationIP20

Industrial enclosure target

02 / Applications

Built for specification-led projects

Focused on professional 20–100 kW applications—not hyperscale, nuclear safety systems or large Tier IV facilities.

EPC & infrastructure projects

UPS configurations for electrical, automation and infrastructure projects.

Discuss application

Industrial automation

Power for control systems, production lines, controllers and critical equipment.

Discuss application

Energy & SCADA

Dispatch centres, substations, monitoring and control systems.

Discuss application

Edge & enterprise IT

Server rooms, telecom nodes and distributed digital infrastructure.

Discuss application

03 / Architecture

NORVION M-Series

A simple modular path from a 20 kW power module to target M60 and M100 frame configurations.

PM20

NORVION Power Module

20 kW

M60

M60 Frame

Up to 60 kW

M100

M100 Frame

Up to 100 kW

N and target N+1 configurationsExternal battery cabinetsStatic bypassService bypassMonitoringCommunication interfaces

Target N+1 architecture and parallel operation remain in engineering development.

Explore architecture and status ↗

04 / For EPC

Design faster. Service easier. Scale without replacing the system.

Engineering support

Preliminary configuration, specification discussion and project support.

Modular architecture

Target staged capacity growth without replacing the full system.

Serviceability

Functional-unit access designed to reduce restoration time.

Rational TCO

Balance of acquisition, service, scaling and lifecycle cost.

Direct product-team access

A practical route for discussing non-standard requirements.

05 / Product status

Evidence, development and planned validation

Transparency is part of the product. Target architecture is not presented as a finished serial system.

Confirmed

Functional tests

DC-converter operation
Active rectifier operation
Inverter operation
Inverter / static-bypass transfer
Dynamic load testing
UPS Service Tool operation

In progress

Engineering development

Parallel module operation
Current sharing
Target N+1 architecture
Short-circuit stability
Upper automation layers
Measurement calibration
Event logging
Embedded-software updates

Planned

Evidence to establish

IEC/EN 62040-1 safety
IEC/EN 62040-2 EMC
IEC/EN 62040-3 performance
Efficiency validation
THDi validation
VFI classification
EMC evidence
Safety and performance evidence

06 / Pilot programme

We are looking for the first NORVION M-Series pilot projects

A controlled route to validate 20–60 kW applications with customers and technical partners before serial release.

Suitable for

→EPC contractors and integrators
→Industrial enterprises
→SCADA and energy projects
→Edge infrastructure
→Service and engineering partners

Participant receives

→Dedicated pilot configuration
→Direct engineering-team involvement
→Joint FAT / SAT programme
→Priority technical support
→Influence on final specification
→Priority terms for future supply

Pilot limits

→20–60 kW project range
→No special safety-class requirements
→Agreed validation programme
→Technical monitoring must be possible
→Documented test outcomes

Submit a pilot project

07 / Operating model

European product management. Manufacturing in Uzbekistan.

The Netherlands

→Head company
→Product strategy
→Development management
→Technical file
→Certification programme
→International sales
→Warranty responsibility

Uzbekistan

→Manufacturing and assembly
→Production control
→Traceability
→Incoming component control
→FAT
→NORVION quality procedures

Engineered and managed from the Netherlands. Manufactured in Uzbekistan under NORVION quality control.

08 / Partner programme

Become a NORVION technical partner

For EPC firms, system integrators, service organisations, distributors and design institutes.

Early platform accessJoint requirements workProject registrationTrainingTechnical supportPilot-specific terms

Discuss partnership ↗

09 / Start a technical conversation

Do you have a 20–100 kW project?

Submit a technical specification or single-line diagram. NORVION will prepare a preliminary configuration and a list of engineering questions.

Submit specification ↗Request technical meeting ↗

Submit specification Discuss pilot
